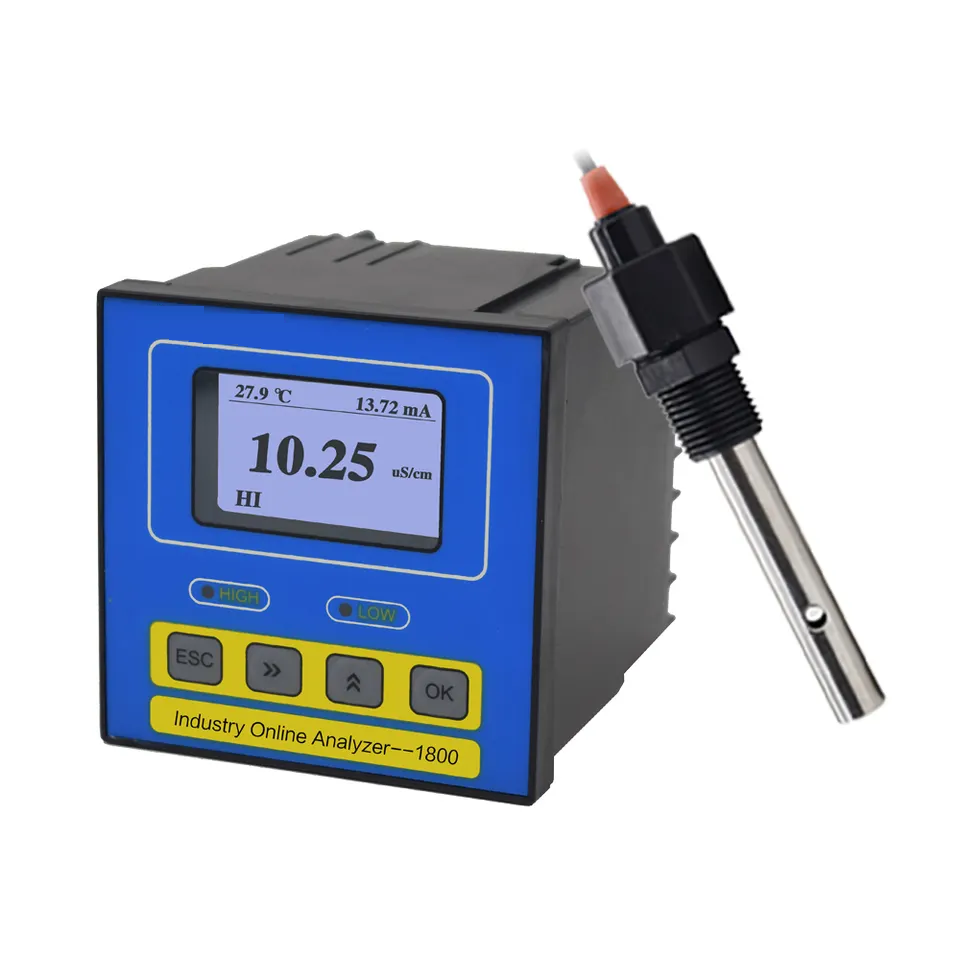

EC-1800 industrial online conductivity/resistivity measurement and control instrument, integrated ARM MCU chip, signal measurement in the way of software automatic real-time tracking, to achieve the intelligent instrument, so that the measurement accuracy and stability are further improved;
The meter can be adapted to a variety of conductivity electrodes: 0.01, 0.02, 0.1, 1.0, 10.0cm-1 conductivity electrodes, measuring range from 18.25 MΩ(0.05 us) to 100 mS (temperature compensation using NTC10K, can achieve 0-120℃ temperature measurement);
The instrument is widely used in water treatment equipment, environmental engineering, pharmaceutical, electronics, chemical, agricultural planting, aquaculture, scientific research institutes, electroplating, metallurgical manufacturing, machining and other industries.
Model: EC-1800
Name: EC-1800 Conductivity/Resistivity Controller
Measuring Range: Conductivity:0-200uS/cm to 0-200mS/cm;0~18.25MΩ
Displaying Mode: 128*64 LCD Screen;
Accuracy: 1.0%(FS);
Current Output Signal: 4-20mA, optional:RS485;
Control output signals: High/Low limit dual relay control;
Working Condition: Ambient temp:0～50℃, Relative humidity≤85%;
Power supply:AC 220V or DC24V
Power consumption: ≤3W
Outline dimension: 96×96×110mm(high×width×depth)
Hole size: 92×92mm(height×width)
